Range Rover P25A9 Fault

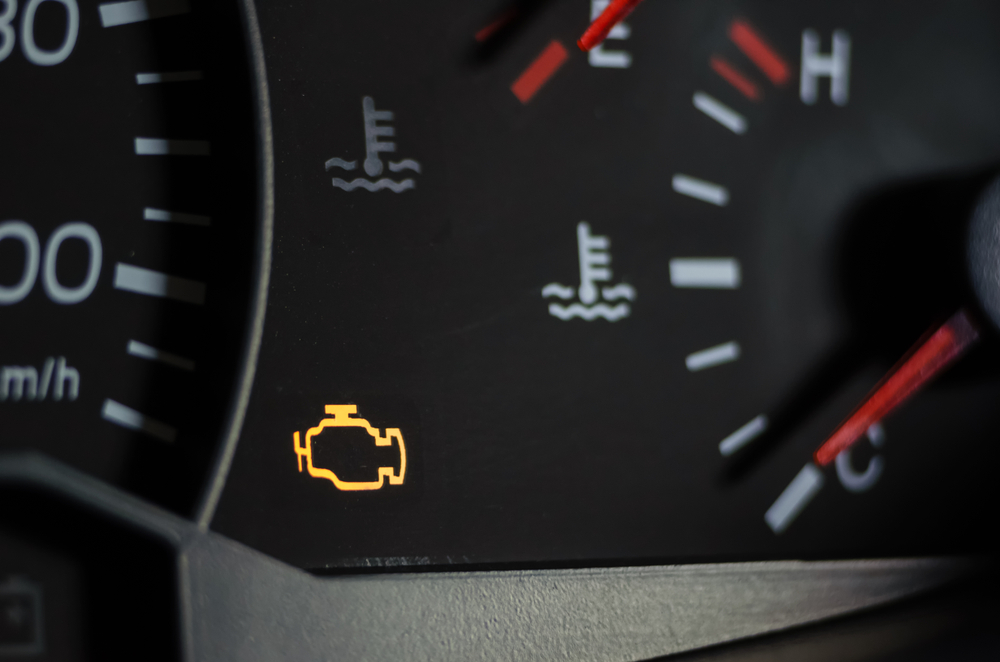

There had been no signs of trouble at all. Then, without any prior indication, the engine management light illuminated on Mr J’s 2018 Range Rover Velar, joined by a dashboard message relating to the engine oil system.
An unexpected oil-related warning is enough to worry any vehicle owner. The Range Rover Velar engine warning lights left Mr J understandably anxious. What had gone wrong? Was it safe to keep driving? And would the situation deteriorate if left unaddressed?
Mr J, from Norwich, got in touch with CSN Autos in Wymondham on the strength of a friend’s recommendation. He wanted a thorough investigation and a clear answer about what was causing the warnings.
The vehicle was booked in straight away.
First Steps: Locating the Range Rover P25A9 Fault Code
On arrival at CSN Autos, Wymondham, our starting point with Mr J’s Range Rover Velar was to gather as much background as possible. We asked Mr J when the dashboard warnings had first appeared, whether they had stayed on continuously or come and gone, and whether anything unusual had occurred before they showed up.
Once we had that information, our technicians connected dealer-level diagnostic equipment to the vehicle and performed a full system scan. One stored fault code was identified:
- P25A9-13: Piston cooling oil control circuit open. This indicated that the engine control module (ECM) had registered an open circuit in the electrical circuit serving the piston cooling oil control valve.
The role of the piston cooling oil control valve is to govern the flow of engine oil to oil jets housed within the engine block. These oil jets spray oil against the underside of the pistons to help control piston temperature. If the valve’s electrical circuit experiences an interruption, the engine control module may be unable to command the valve, potentially leaving oil flow to the piston cooling jets uncontrolled.
That alone can be enough to illuminate the engine management light and generate an oil-related warning message on the dashboard, even if the oil level is perfectly adequate. The warning relates to the engine’s ability to control oil flow to the piston cooling system, not necessarily to oil quantity.
The fault code was now recorded, so the logical next step was a thorough investigation to determine precisely what had caused the Range Rover P25A9 fault.
P25A9 Range Rover Diagnostic: Pinpointing the Cause Step by Step
The fault code from the initial scan provided a solid starting point for the P25A9 Range Rover diagnostic. It flagged an open circuit in the piston cooling oil control circuit, but it couldn’t tell us whether the problem originated in the wiring, the connector, the valve, or another part of the circuit. Each possibility had to be examined and eliminated through a structured process.
Step 1: Reviewing manufacturer technical resources
Before any physical inspection began, our technicians consulted the manufacturer’s technical information system. They reviewed known faults, technical service bulletins, recalls, and field remedies linked to the P25A9 code on the Range Rover Velar.
- This step ensures our investigation is shaped by the latest available technical information.
Step 2: Visual assessment of the wiring harness
Our technicians visually inspected the wiring harness that connects to the piston cooling oil control valve, checking for damage, abrasion, corrosion, or any form of disturbance capable of producing an open circuit.
- No visible deterioration or damage was identified on the harness.
Step 3: Evaluating the connector and its terminals
Next, the connector at the piston cooling oil control valve was checked, together with the individual terminal pins within it. Issues such as a poorly seated pin, degraded contact surfaces, or corrosion can produce an open circuit reading even when the wiring is fully intact.
- The connector and its terminals were in good working order, showing no signs of corrosion or physical damage.
Step 4: Circuit analysis using an oscilloscope
To go beyond what a visual check could confirm, our technicians connected an oscilloscope to test the electrical integrity of the wiring between the engine control module and the piston cooling oil control valve. This captured the signal and supply behaviour under live conditions, rather than relying on a static resistance check alone.
- The wiring tested within normal parameters, confirming the electrical path between the control module and the valve was intact.
Step 5: Direct testing of the piston cooling oil control valve
With every other part of the circuit now cleared, the valve was the remaining variable to investigate. Dealer-level diagnostic software was used to activate the valve while our technicians observed how it responded.
- The valve did not respond as expected. Testing indicated the valve had failed, confirming it as the source of the Range Rover P25A9 fault.
This methodical process allowed our technicians to rule out every other element in the circuit with confidence, confirming the valve itself as the single point of failure.
Completing the Range Rover Oil Control Valve Replacement
With the failed component positively identified, our front-of-house team contacted Mr J to present the results of the investigation. We took him through each stage of testing, explained why the wiring and connectors had been cleared of fault, and confirmed that the piston cooling oil control valve needed replacing. Mr J was happy to proceed, and the work was set in motion.
Here’s what the repair involved:
- Accessing and removing the failed piston cooling oil control valve from its position in the engine block. The valve is situated beneath other engine components, requiring careful disassembly to reach it without disturbing surrounding systems.
- Fitting of a new replacement valve, with correct seating, sealing, and secure electrical connection confirmed.
- Reconnection of the wiring harness and connector to the new component.
- Full clearance of stored fault codes from the engine control module.
- Post-repair system checks to confirm the replacement valve was responding correctly to commands from the engine control module.
- A concluding system scan confirming no additional fault codes were stored and the oil-related warning message had cleared.
How the Range Rover Oil Control Valve Replacement Resolved the Problem
With the work finished, Mr J’s Range Rover Velar was returned to him with the engine management light extinguished and the dashboard free of oil-related warnings. The piston cooling oil control valve failure had been confirmed, repaired, and fully verified, leaving the system functioning as it should.
The outcome was exactly what Mr J had been looking for: a thorough investigation, a fault accurately pinpointed to a failed piston cooling oil control valve, and a complete resolution achieved in one visit. Clear, honest communication throughout the process gave Mr J full visibility of what was happening and why.
CSN Autos delivered a faster turnaround, a competitive repair cost, and the peace of mind that comes from a methodical, evidence-based approach to identifying the Range Rover P25A9 fault.
